iFi Launches New hip-dac

Press Release

Above: iFi hip-dac

iFi hip-dac warms the soul with intoxicating
sound

With a sound as flavoursome and richly detailed as a delicious single
malt, the hip-dac portable USB DAC/headphone amp delivers the
perfect pick-me-up for any music lover on-the-go

Southport, England – iFi adds to its award-winning range of portable
DAC/headphone amps with an all-new design – the hip-dac.

Smartly dressed in petrol blue with a touch of copper, the go-anywhere hip-dac is designed to slip discretely into a pocket and offers an extensive hi-res specification that belies its eminently affordable £149, (€159, $149) price tag.

The hip-dac replaces the inferior DAC (Digital-to-Analogue Convertor) and amp circuitry in smartphones, tablets, PCs and Macs to vastly improve headphone sound. Its design and performance set it apart from other DAC/headphone amps in its class – connect your playback device via USB, plug in your favourite corded headphones or in-ear monitors and the hip-dac delivers a sound brimming with bold dynamism and fluid refinement, effortlessly engaging the listener with all manner of music.

In the home, in the office, on a train or plane – the hip-dac is the music lover’s inseparable friend.

Digital stage

The DAC section is based around a Burr-Brown DAC chip that iFi uses extensively in its products, selected for its fluid, highly ‘musical’ sound quality and True Native architecture. This, combined with custom iFi circuitry, enables the hip-dac to deliver excellent sound quality across all manner of digital audio formats, including bitperfect PCM, native DSD and MQA – the hi-res streaming codec, as used by Tidal’s ‘Masters’ tier.

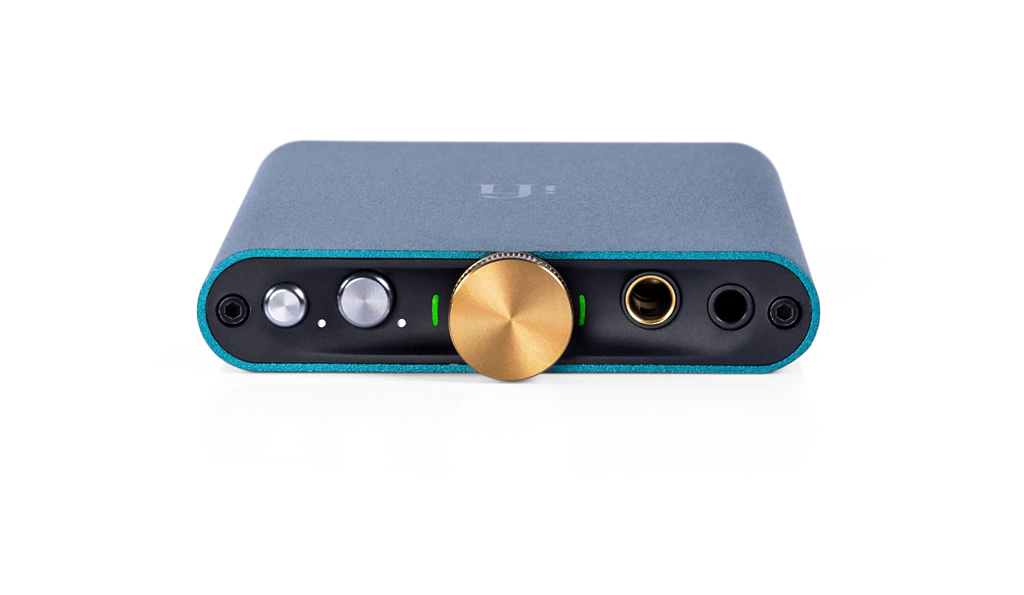

Hi-res PCM and DXD audio data is supported at sampling rates up to 384kHz, alongside DSD from 2.8MHz to 12.4MHz (DSD64, 128 and 256). Thanks to the Burr- Brown chip’s True Native design, PCM and DSD take separate pathways – this enables both PCM and DSD to remain ‘bit-perfect’ in their native form right through to analogue conversion, which is not the case with most other DAC/headphone amps. Either side of the rotary volume control reside a pair of LEDs that change colour to indicate the format and sampling rate of the digital audio being played.

Extensive clock-locking eradicates jitter (digital distortion), using iFi’s GMT femto-precision clocking system to maintain the integrity of the digital signal until conversion to analogue.

Another circuit feature that separates this and iFi’s other DACs from competing designs is the XMOS chip, which processes audio data received at the USB input and is programmed in-house. Rather than relying on firmware supplied off-the-shelf, which is not typically optimised for audiophile-grade sound, iFi programs its own bespoke firmware to enhance audio processing.

iFi’s continuous software development allows features to be added or optimised via firmware updates, enabling the hip-dac to be tailored to the user’s playback priorities and ensuring it stays cutting-edge over time. Users can even download and install different versions of iFi firmware to experiment with different digital filters if they wish.

Analogue stage

The hip-dac’s amp circuitry is of balanced (differential) design – highly unusual in a DAC/headphone amp anywhere near this price point. Balanced audio circuits have long been championed by renowned high-end audio electronics engineer John Curl, now a technical consultant for iFi, given their ability to reduce noise within the signal path. Curl has worked closely with iFi’s in-house technical team, led by Thorsten Loesch, to produce an analogue stage of exceptional quality for a device of this kind.

The circuitry incorporates a range of high-quality components, carefully selected for their performance in an audio context, including a custom iFi OV op-amp, TDK C0G class 1 ceramic capacitors, a precision low-noise power supply IC from Texas Instruments and a high-quality analogue volume pot (many portable DAC/headphone amps use inferior digital volume controls).

The headphone amp has a nominal power rating of 400mW and is capable of delivering over 700mW from the balanced output depending on the impedance of the attached headphones – impressive in comparison with the hip-dac’s peers, driving all manner of headphone/earphone types with ease.

The amp stage features switchable gain, which iFi terms PowerMatch. This matches the level of drive to the load presented by the headphones, by adjusting input sensitivity and thereby signal strength. With high-sensitivity headphone types such as in-ear monitors, leave PowerMatch at its lower setting for ultra-low-noise performance. But if your headphones require more drive – most on/over-ear types, for example – press the PowerMatch button on the front panel to increase gain.

XBass is another user-selectable feature – a sophisticated form of ‘bass boost’ that enhances low frequencies without muddying the midrange, particularly useful with earphones and open-back headphones that may lack deep bass. It operates entirely in the analogue domain rather than messing with the digital signal via DSP and may be switched in or out of the signal path.

Get connected

The hip-dac’s USB input handles audio data up to 32-bit/384kHz and supports the ‘SuperSpeed’ USB 3.0 standard, as well as USB 2.0 for backwards compatibility. It is asynchronous, meaning that the data rate is regulated solely by the hip-dac’s specialised audio clock circuitry for accurate, jitter-free data transfer from the source device.

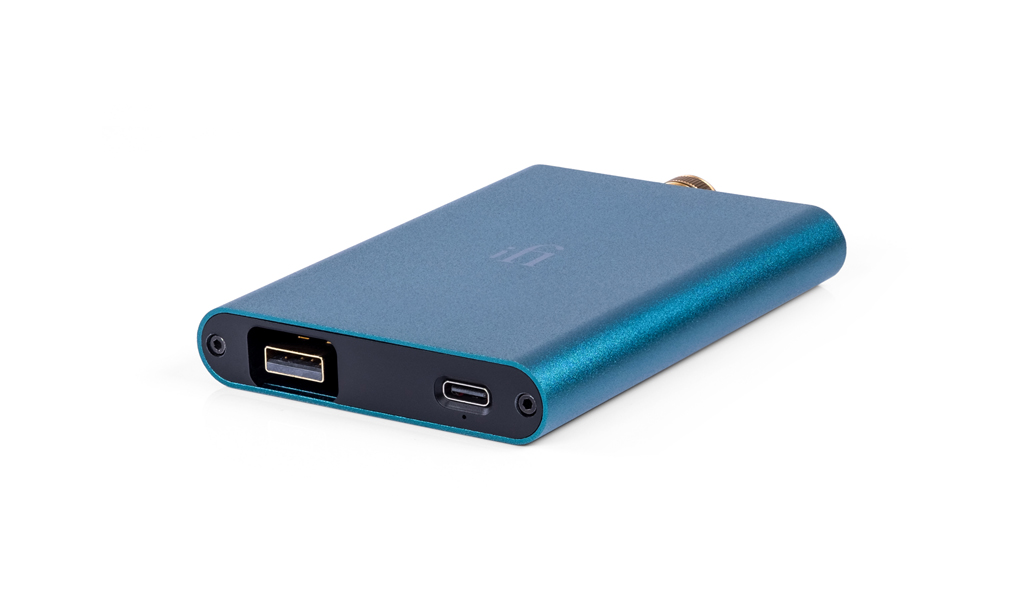

There are two USB ports – Type A for audio data and USB-C for charging. Unusually, the Type A input features a ‘male’ connector, rather than a typical ‘female’ port. This arrangement provides greater mechanical integrity than the USB/Micro USB ports commonly found on AC/headphone amps from other manufacturers. It also offers an advantage to iPhone and iPad users, because it accepts Apple’s Lightning to USB Camera Adaptor directly without requiring an additional female-to-male USB adaptor. (The Camera Adapter is required to connect Apple iOS devices to third-party
USB devices.)

Two outputs are provided – a 3.5mm socket for headphones with a single-ended cable/connector and a Pentaconn 4.4mm output enabling headphones equipped with balanced connectivity to take full advantage of the hip-dac’s differential amp design. In addition, the 3.5mm output benefits from iFi’s proprietary S-Balanced circuitry, cutting crosstalk and related distortion in half when used with regular, single-ended headphone connections – this is especially beneficial with high-sensitivity in-ear monitors. Combined with the hip-dac’s PowerMatch facility, these outputs deliver class-leading performance with a broader range of headphone/earphone types than other comparably priced DAC/amp designs.

The hip-dac’s 2200mAh battery lasts for around eight to 12 hours of playing time, depending on volume level and how power-hungry the connected headphones are. It comes bundled with three USB cables: a USB-C OTG (On-The-Go) cable, ideal for connecting Android devices and PCs/Macs with USB-C ports; a USB Type A cable; and a Type A to USB-C charging cable. (The Camera Adapter required to connect Apple iOS devices is purchased separately.)

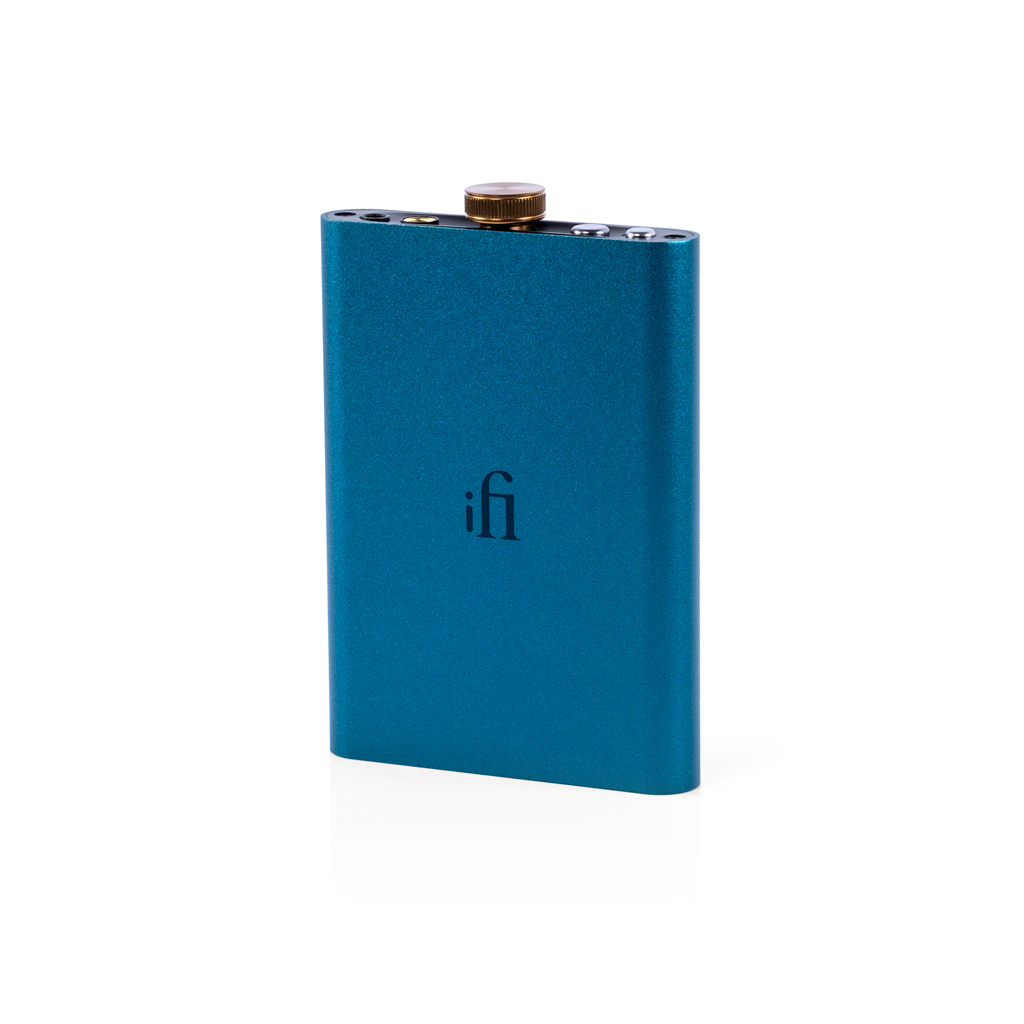

With its petrol blue, 102x70x14mm, extruded aluminium enclosure, the hip-dac has a high-quality look and feel with a colour that is bang on trend – the Pantone Colour of the Year 2020 is also blue. Just the tonic for any headphone fan, the hip-dac is available from February at an RRP of £149 (€159, $149) and will be showcased at CanJam NYC 2020.

iFi is the sister-brand of Abbingdon Music Research (AMR) and is headquartered in Southport, UK. The two brands respectively design and manufacture portable, desktop and lifestyle audio products and high-end hi-fi components. Combined in-house hardware and software development teams and a ‘music first’ approach enable iFi and AMR to create advanced audio products that deliver new levels of design, functionality and performance at their respective price points. Since iFi’s formation in 2012, its products have earned many awards around the world, helping it to become one of the fastest-growing brands in its field.
